QSR - Miroplan

Glassless mirror panel

When viewed from a close distance, QSR - Miroplan panels have a mirroring effect similar to that of a normal glass mirror.They have a certain rigidity, a characteristic that does not allow the accentuated possibilities of distorted reflection that is typical of QSF - Miroflex mirror sheets.
View all
The picture underlines the slight flexibility of QSR - Miroplan mirror plates used to obtain a undistorted reflection of the images mirrored.
QSR - Miroplan mirror plates are covered by a protective film that preserves the integrity of mirroring surface during the transportation and installation.

The comparison between the thickness of QSF - Miroflex (1 mm) and a QSR - Miroplan (3 mm).
Teatro Verdi di Pisa, ''Paride ed Elena'' In the foreground, some QSR - Miroplan mirror panels used to realize some scenographical mirrors. On the flowing walls, that open on a RAR - Arizona Rear-illuminated backdrop, they were applied some big mirroring panels realized with some plates of silver QSF - Miroflex that the scenographical workshop submitted to a superficial treatment in order to confer them an aged appearance.
2009 World Aquatics Championships A choreography that used No. 20 framed QSR - Miroplan mirror plates and a series of empty frames that simulated other mirrors to create some spectacular optic illusions.
QSR - Miroplan mirror panels are semi-rigid and, within certain limits, unbreakable.
They are used in scenography or for other applications where, for safety reasons, it is not possible to use glass.
Their mirroring properties are superior to those of QSF - Miroflex flexible sheets and, at close range, are similar to those of a normal crystal mirror.
For greater reflection sharpness even at greater distances it is advisable to use QST - Mirocryl plates.
The mirror plates can be fixed on rigid supports with silicones without solvents or vinyl adhesives.
Or by means of VBI - Bia Tape double-sided adhesive tapes (VBG - Bire Tape when a higher adhesive power is required).
To protect the panels in an optimal way during transport, it is recommended to use a special pallet measuring 205 x 105 x h 15 cm.
Flame reaction
IFR - inherently flame retardant
FR certification
UNI 8177 class 2
DIN 4102 class B2
Composition
polystyrene base
metallized polyester surface
Weight
3,0 kg / m²
Thickness
3.0 mm
Dimensions
100 x 200 cm (dimensional tolerance -0,1% / +0,3%)
Packing method
plate with protective film
Finish
mirror finish
matt black backside
Available colours
see colour chart
Custom colours
not available

Availabilty
full plates only

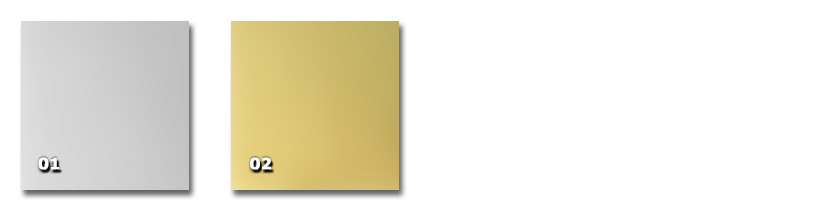

Colour chart

QSR - Miroplan 01. silver02. gold

Video & Documentation

2009 World Aquatics Championships: QSR - Rigid Mirror

This material was used for...

2009 World Aquatics Championships

Events

Teatro Verdi di Pisa, ''Paride ed Elena''

Lyric opera
