5FW - Frame Wide

Visible frame screens from 5 to 10 m width

5FW - Frame Wide - Aspect ratio 4:3 Screen size ............. Weight500 x h 375 cm ........ 60 kg600 x h 450 cm ........ 70 kg700 x h 525 cm ........ 82 kg800 x h 600 cm ........ 94 kg900 x h 675 cm .......106 kgFrame size = screen size + 19 cm
View all
5FW - Frame Wide - Aspect ratio 16:9 Screen size ............. Weight.. 500 x h 281 cm ...... 58 kg.. 600 x h 337 cm ...... 68 kg.. 700 x h 394 cm ...... 80 kg.. 800 x h 450 cm ...... 92 kg.. 900 x h 506 cm .....104 kg1.000 x h 562 cm .....116 kgFrame size = screen size + 19 cm
Normal endowment 5FW∙SP - Wall fixing brackets5FW∙GL - Eyebolts for hanging
Optionals 5FW∙S1 - Floor stands
Optionals 5FW∙S1 - Floor stands5LC∙TC - Truss fixing clamp
Components 1 - Frame made of matte black enameled aluminum2 - Sliding link for rubber band3 - Lifting eye4 - Sliding nut5 - Eyelet6 - Rod made of galvanized metal7 - Rubber band
Screen fixing a - Frame made of matte black enameled aluminumb - Sliding link for rubber bandc - Eyeletd - Rod made of galvanized metale - Rubber band
Teatro Manzoni, ''Musical! Award'' Projections on a 16:9 5FW - Frame Wide screen, 5,00 x h 2,81 m, screen made of PBO - Bianco Ottico.In the background ...
5FW - Frame Wide is a frame screen up to 10 m wide.
It can be hung or supported by two special floor stands.
Structure
sectional matte black enameled aluminium made 95 x 55 mm
Screen
at choice - flameproof European Norm EN 13501·1
Seams without superposition
Fixing of the screen
with rods and elastics
Installation
to ceiling / to wall
Features
simplicity of assemblage and transport

Colour chart

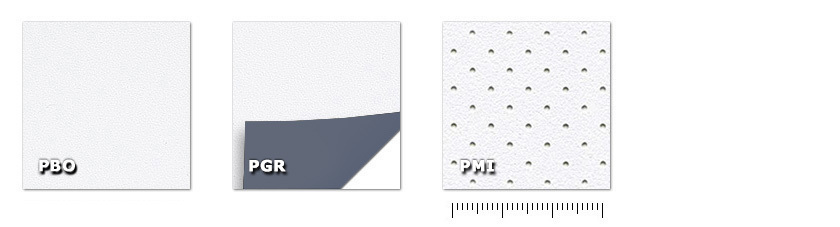

5FW - Frame Wide Frontal projection screensPBO-BiancoOtticoPGR-GreyoutPMI-BiancoOtticoPerforato

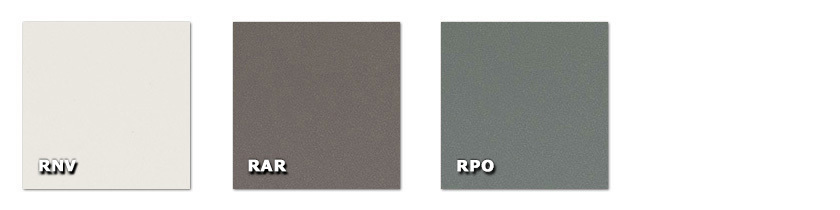

5FW - Frame Wide Rear-projection screensRNV-NevadaRAR-ArizonaRPO-Polar
5FW - Frame Wide Chroma key backdropsQCK-Cychroma

This material was used for...
