5W - Master Wide

Motorized screen from 3 to 4,5 m wide

5W - Master Wide Ideal for polyvalent spaces to use occasionally as room for projections: classrooms, meeting rooms, small rooms for conferences.Standard widths:A - Screen: 300 / 350 / 400 / 450 cmB - Box = A + 11 cmC - Counterweight = A + 4 cm1 - Standard feeding: on the right
View all
1:1 aspect ratio - Standard dimensions Screen size ........ Weight ±300 x h 300 cm ... 26 kg350 x h 350 cm ... 30 kg400 x h 400 cm ... 36 kg
4:3 aspect ratio - Standard dimensions Screen size ........ Weight ±350 x h 265 cm ... 29 kg400 x h 300 cm ... 34 kg450 x h 340 cm ... 38 kg
16:10 aspect ratio - Standard dimensions Screen size ........ Weight ±350 x h 219 cm ... 28 kg400 x h 250 cm ... 33 kg450 x h 281 cm ... 37 kg16:10 aspect ratio can also be achieved by reducing with the limit switch the height of a screen with 4:3 aspect ratio.
16:9 aspect ratio - Standard dimensions Screen size ........ Weight ±350 x h 197 cm ... 28 kg400 x h 225 cm ... 33 kg450 x h 253 cm ... 37 kg16:9 aspect ratio can also be achieved by reducing with the limit switch the height of a screen with 4:3 aspect ratio or 16:10 aspect ratio.
Position of the screen in relation to the roll 1 - Rear drop (standard)2 - Front drop (optional)A - Projection side
Ceiling and wall installation Fixing bracketA - M6 holeThe Fixing brackets:- are included in the purchase price- there are 4 for all screen widths
Ways of installation 1 - Installation to ceiling2 - Installation to wall
Structure
case made of enameled white aluminium
winding roll made of aluminum
Engine
silent engine 230 V - 50 Hz
power 6 Nm - consumption 90 W
speed 17 rpm - roll Ø 10 cm - lifting speed 9 cm per second
Remote control (optional)
Screen
at choice - flameproof European Norm EN 13501·1
Installation
to ceiling / to wall / to the stage structures
Features
custom size manufacturing too
maximum width 4,5 m - maximum h 4,0 m
CE conformity

Width of the screen
h at choice
Weight
the screen is excluded
300 cm . . . . . . .
350 cm . . . . . . .
400 cm . . . . . . .
450 cm . . . . . . .
22 kg
24 kg
26 kg
29 kg

Total width
of the case
width of the screen + 11 cm
(it can be reduced on demand up to 5 cm)

Section of the case
124 x 133 mm

Colour chart

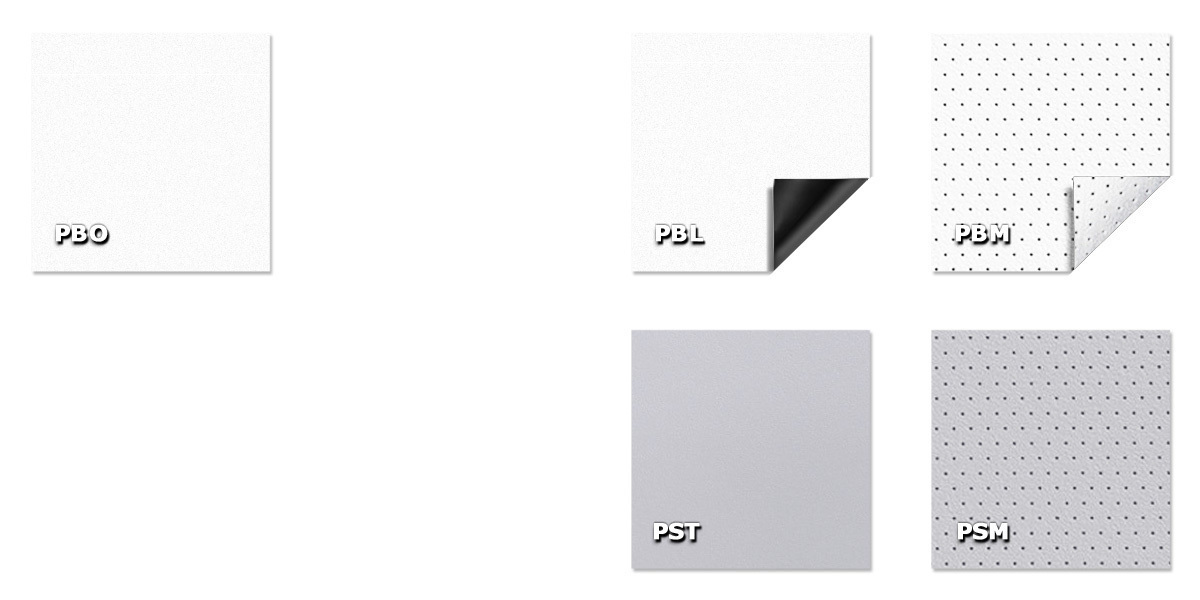

Frontal projection screens PBO - Bianco OtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy
Rear-projection screens RNV - NevadaRAR-Arizona
Film per chroma key QCK - Cychroma
