Data sheet

UNR - Resinet

High resistance net

UNR - Resinet 25 x 25 mmŲ 2 mm01. whiteThe elevated breaking load and the size of the mesh make the net ideal, in the black colour, for the realization of shaped backdrops to be extended horizontally in the theaters between the proscenium and the stalls for the protection of the orchestra pit from the fall of objects coming from the stage or from the stalls.
View all
UNR - Resinet Type - Square mesh ! . . . Ų . . . . ! . Breaking load¹ UNR 25C2 - 25 x 25 mm . . ! . 2 mm . . . ! . 42 kg UNR 25C25 - 25 x 25 mm . . ! . 2,5 mm . . ! . 60 kg UNR 42C3 - 42 x 42 mm . . ! . 3 mm . . . ! . 80 kg UNR 50C5 - 50 x 50 mm . . ! . 5 mm . . . ! . 120 kg ¹ traction of each link from an extremity to the other of the net
UNR - Resinet 25 x 25 mmŲ 2 mm01. white
UNR - Resinet 25 x 25 mmŲ 2 mm99. black
UNR - Resinet a25 x 25 mmŲ 2 mm99. black
UNR - Resinet 42 x 42 mmŲ 3 mmred
UNR - Resinet 42 x 42 mmŲ 3 mmredA - Rope for the reinforcement of the perimeter (optional)
UNR - Resinet 42 x 42 mmŲ 3 mmredA - Loop 50 cm for the corners (optional)
Flame reaction
IFR - inherently flame retardant
FR certification
white, black: UNI 9177 class 1
colours: not flameproof
Composition
100% high tenacity nylon polyamide
Weight
from 200 to 400 g / m²
Piece size
tailor made
Packing method
folded
Available colours
see colour chart
CODE
MESH
UNR 25C2
25 x 25 mm mesh - thread Ų 2,0 mm
breaking load 42 kg
without knots, woven with an unmovable weave
UNR 25C25
25 x 25 mm mesh - thread Ų 2,5 mm
breaking load 60 kg
without knots, woven with an unmovable weave
UNR 42C3
42 x 42 mm mesh - thread Ų 3,0 mm
breaking load 80 kg
without knots, woven with an unmovable weave
UNR 50C5
50 x 50 mm mesh - thread Ų 5,0 mm
breaking load 120 kg
without knots, woven with an unmovable weave
Note: the breaking load is theoretical and is calculated on the traction of each mesh from one end of the net to the other
Availabilty
in full bolts
in tailor made creations

Colour chart

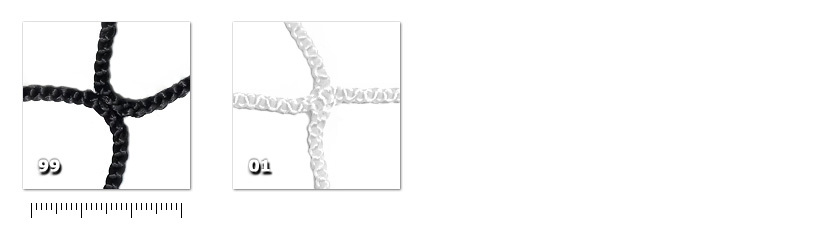

UNR - Resinet 01. white99. blackFR certification: UNI 9177 class 1

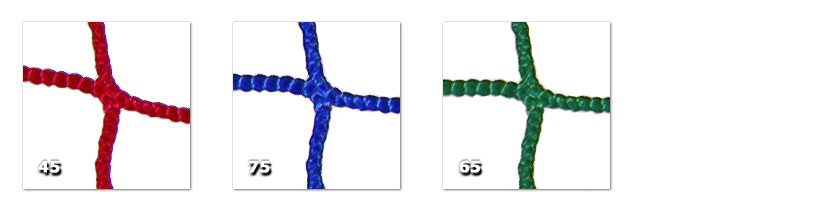

UNR - Resinet Colours on demand45. red65. green75. blueFR certification: not flameproof
