1K - Kompas



Kompas - Track system 1KB - Kompas rail profile made of matt black anodized aluminium600 cm bars1KBP - Kompas pre-drilled rail profile made of matt black anodized aluminiumwith holes for fixing with screws600 cm bars
View all
Ceiling mounting 8LCA - Cantinella1KBPBinKompBinarioPref1KM - Master carrier1KS - End stop
Wall mounting 8S - Metal bracket1KBBinKompBinario1KAS - Suspension bracket
Flying bar system mounting 8C50 - Clamp Ø 50 mm + M8 nut1KB - Kompas rail1KAS - Suspension bracket1T34-HookClamp
1KM - Master carrier + rope clamp - capacity: 20 kg- nylon wheels + ball bearings- frame made of black anodized aluminum + anti-noise rubber buffers1KMS - Master carrier without rope clamp 1KMF - Rope clamp - made of aluminum
1T14 - Overlap arm for naster carrier - made of black enameled iron
1T13 - 2 Wheel runner - capacity: 10 kg- nylon wheels + ball bearings- frame made of special plastic + anti-noise rubber buffers
1KC - 4 Wheel runner - capacity: 20 kg- nylon wheels + ball bearings- frame made of black anodized aluminum + anti-noise rubber buffers
Application
Kompas is a modular track system for:
- medium-weight Traveller curtains
- cycloramas
- light-weight scenery elements
Key features
- quick and easy assembly
- sturdiness
- silent operation
- low clearance profile
- tested and highly reliable
Rail
- extruded aluminium profile
- black anodized finishing
- 780 g / m weight
- 600 cm max bar length
- 200 cm max span
- 40 cm min curve radius
The table shows the maximum loads applicable to the rail only.
It is essential to consider the load capacity of each component of the system.
The load limit of the system is determined by the weakest component.
Carriers
- nylon wheels with ball bearings
- with anti-noise rubber bumpers
Carriers Load Capacity
- 1KM - Master Carrier: 20 kg
- 1KC - 4 Wheel Runner: 20 kg
- 1T13 - 2 Wheel Runner: 10 kg
Operating rope
- black
- 8 mm diameter
- 100% high tenacity polyester rope
Fixing options
- ceiling mounting (with 1KBP - Pre-drilled rail)
- wall mounting
- flying bar system (Ø 5 cm tube)

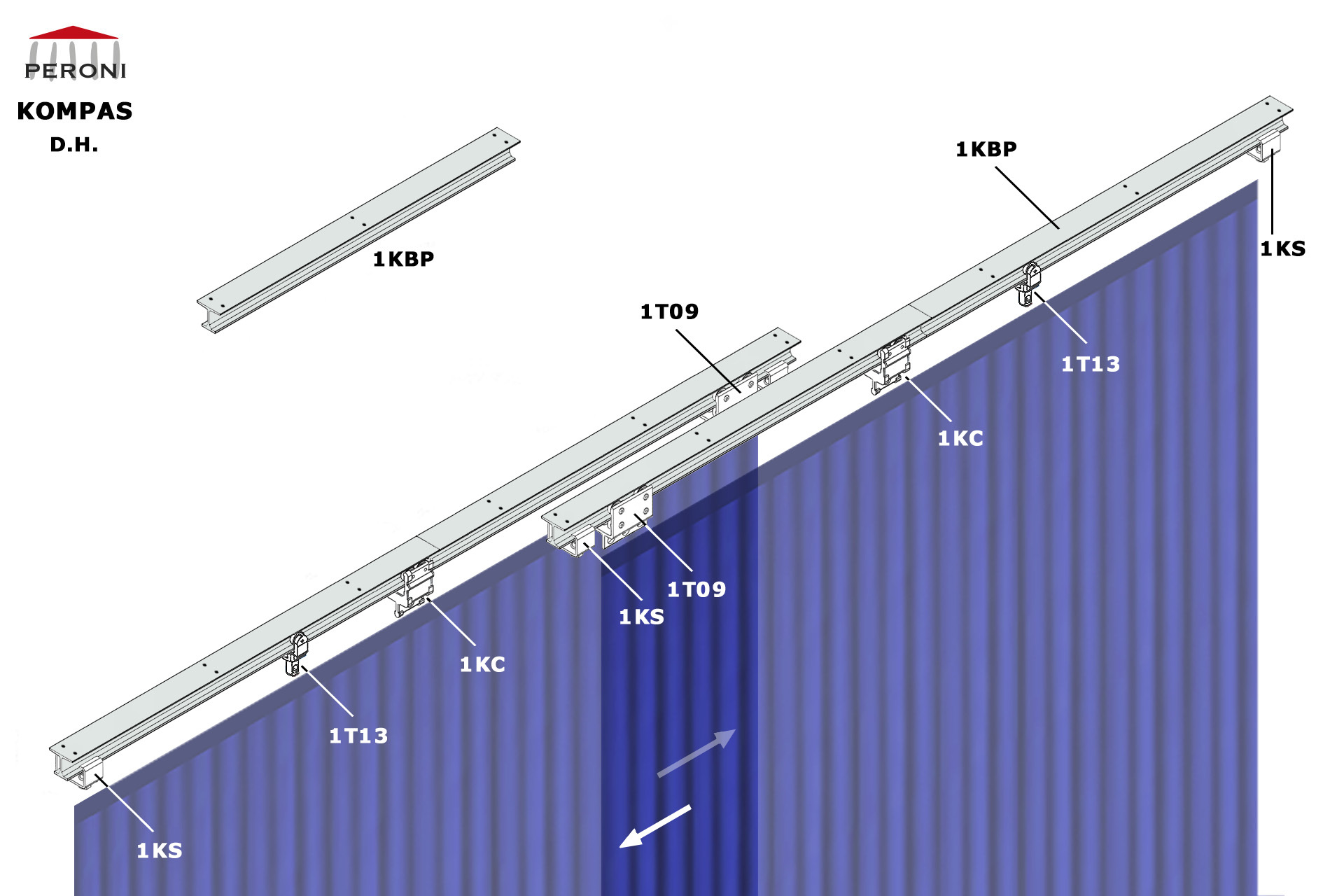

Main configurations
- S. Single rail central opening
- L. Wipe side opening
Motion control
for S. / D. / L. configurations
- H Hand pulled uncorded walk-along*
- C. Corded manual**
- M. Motorized***

* straight and curved rails
** straight tracks only, for curved tracks see TRX system
*** see TRX system

Colour chart

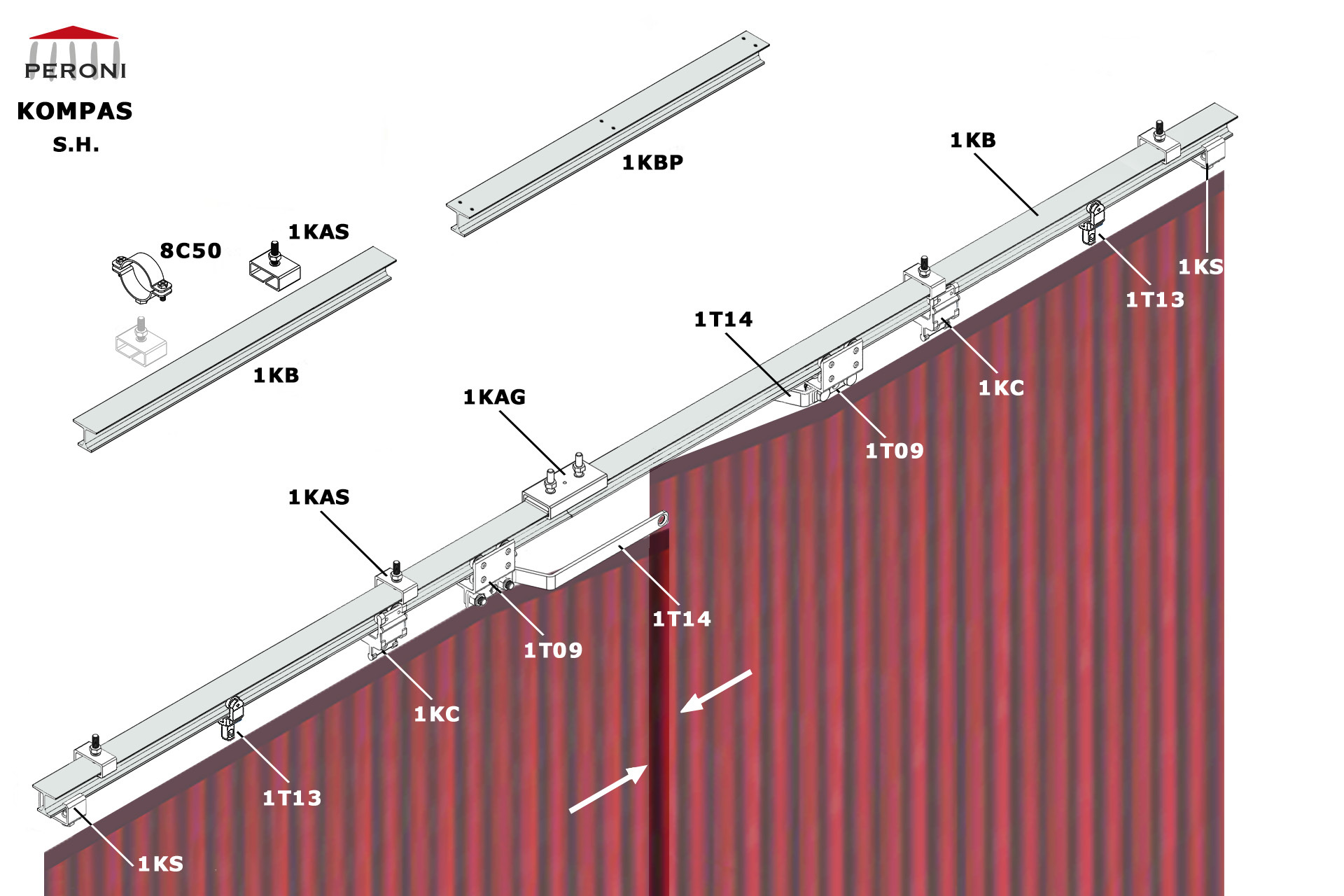

S.H. configuration track S. Single rail central openingH. Hand pulled uncorded walk-along for central overlap up to 50 cmConfiguration also possible with curved railsComponents1KB - Straight rail1KAG - Connection1KS - End stop1KM - Master carrier1T14 - Overlap arm1T13 - 2 Wheel runnerFixing 1KBP - Straight pre-drilled rail1KAS - Suspension bracket8C50-Collarea2foriKompas1T34 - Hook clamp for Ø 50 mm tubes

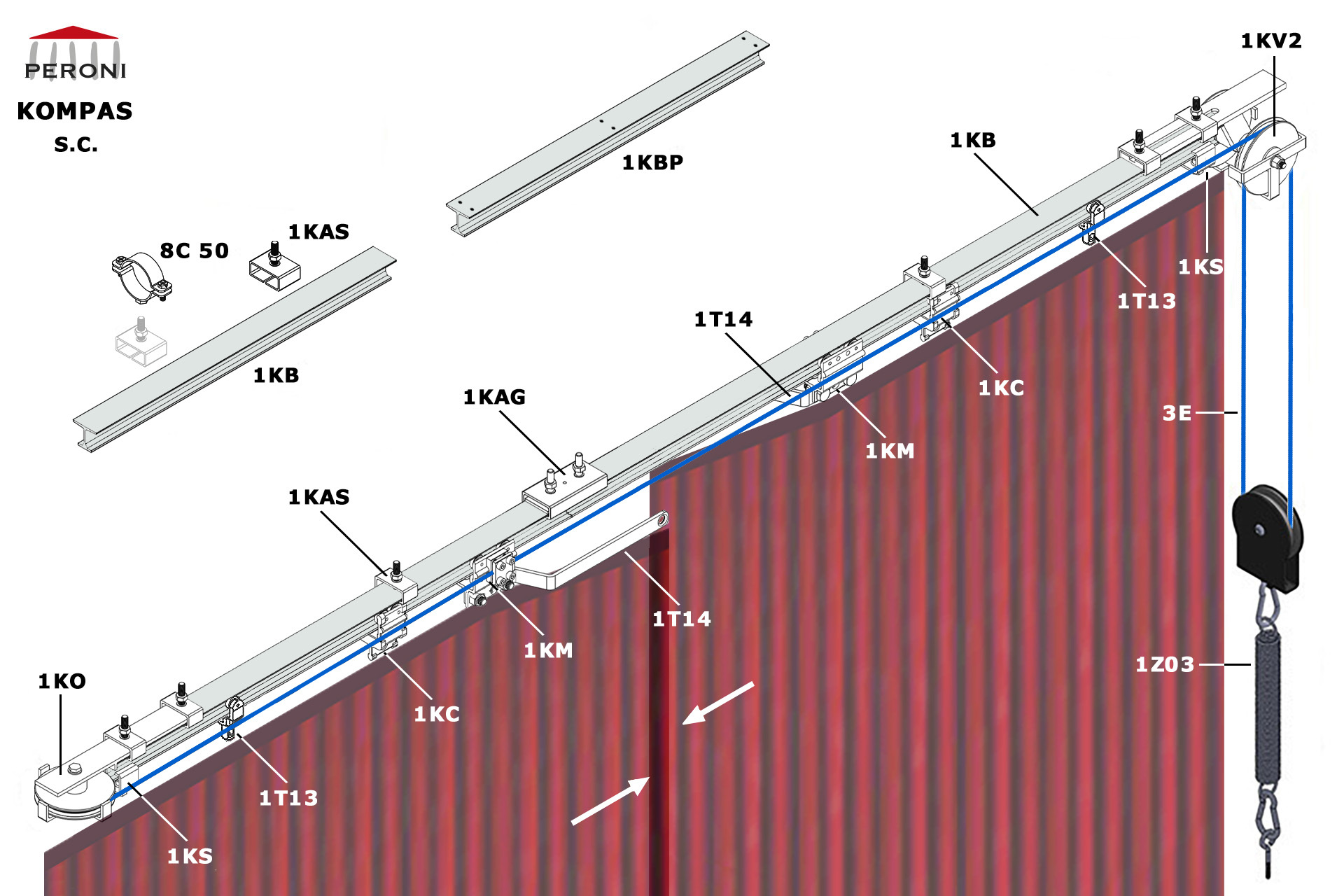

S.C. configuration track S. Single rail central openingC. Corded manualfor central overlap up to 50 cmTo achieve this configuration:- motorized- with curved railssee TRX systemComponents1KB - Straight rail1KAG - Connection1KS - End stop1KM - Master carrier1T14 - Overlap arm1T13 - 2 Wheel runnerMotion control1KO - Horizontal pulley1KV2 - Double pulley1Z03 - See all options3E-CordapoliestereFixing1KBP - Straight pre-drilled rail1KAS - Suspension bracket8C50-Collarea2foriKompas1T34 - Hook clamp for Ø 50 mm tubes

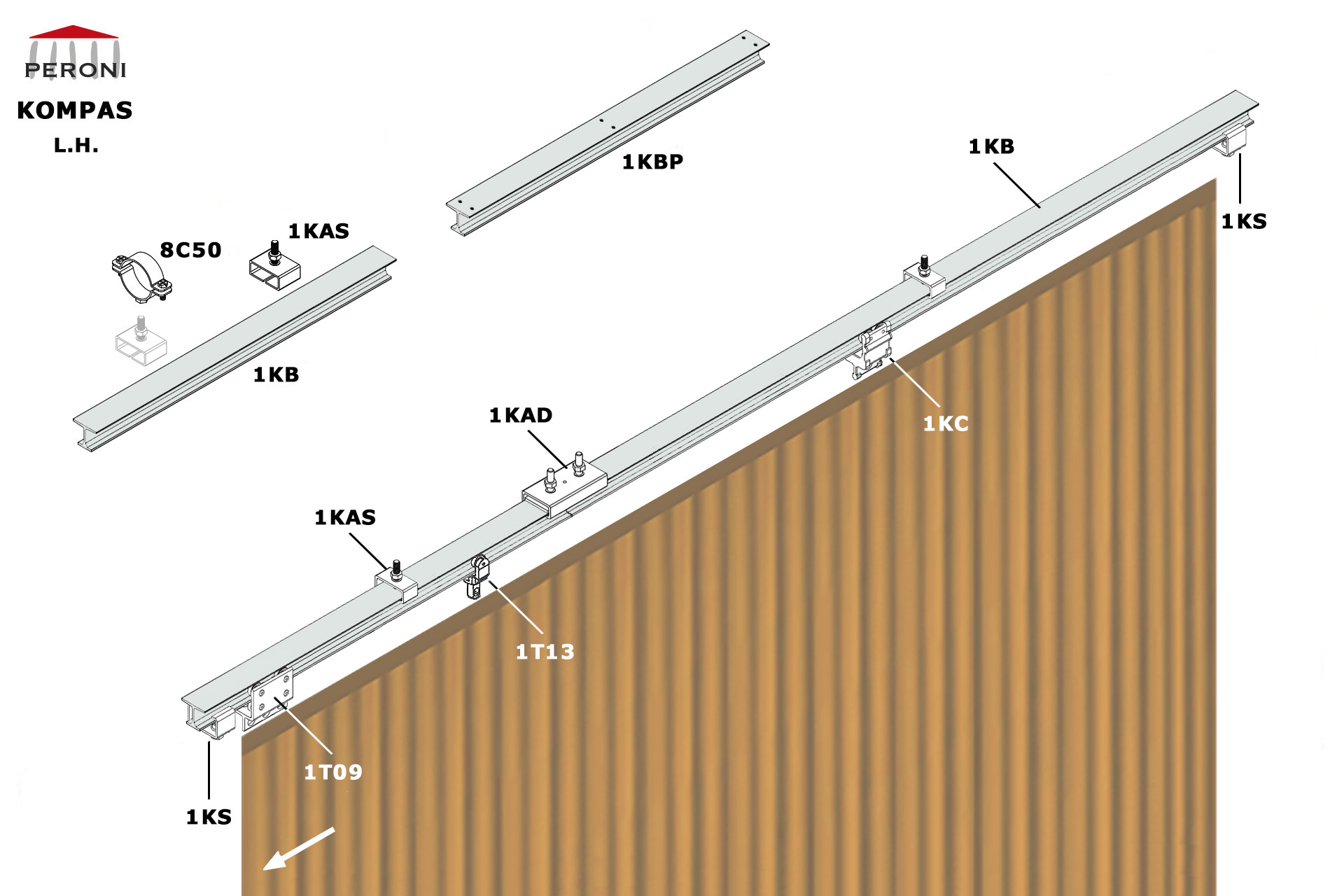

L.H. configuration track L. Wipe side openingH. Hand pulled uncorded walk-alongConfiguration also possible with curved railsCcomponents1KB - Straight rail1KAG - Connection1KS - End stop1KM - Master carrier1T13 - 2 Wheel runnerFixing1KBP - Straight pre-drilled rail1KAS - Suspension bracket8C50-Collarea2foriKompas1T34 - Hook clamp or Ø 50 mm tubes

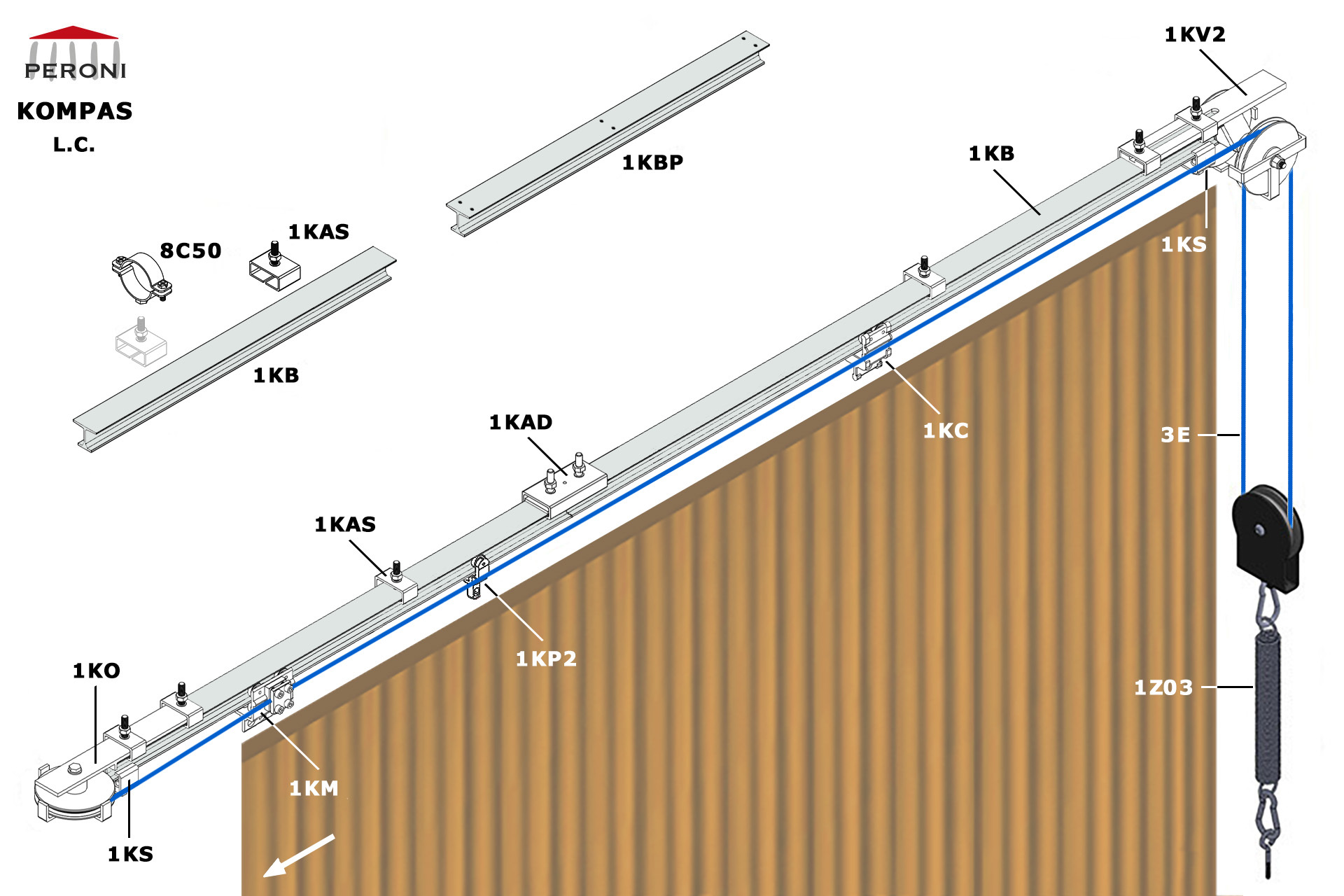

L.C. configuration track L. Wipe side openingC. Corded manual To achieve this configuration:- motorized- with curved railssee TRX systemComponents1KB - Straight rail1KAG - Connection1KS - End stop1KM - Master carrier1T13 - 2 Wheel runnerMotion control1KO - Horizontal pulley1KV2 - Double pulley1Z03 - See all options3E-CordapoliestereFixing1KBP - Straight pre-drilled rail1KAS - Suspension bracket8C50-Collarea2foriKompas1T34 - Hook clamp or Ø 50 mm tubes
