RNB - Nebbia

Rear-projections film

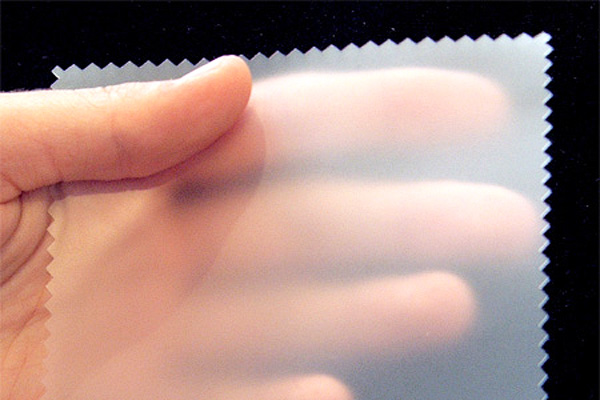

RNB - Nebbia The film is rather transparent and has a frosted appearance similar to that of ground glass.
View all

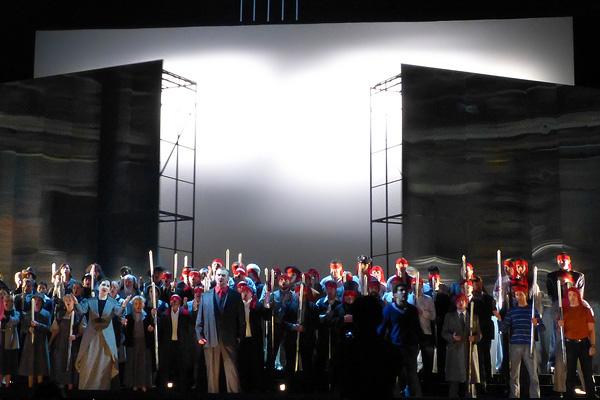

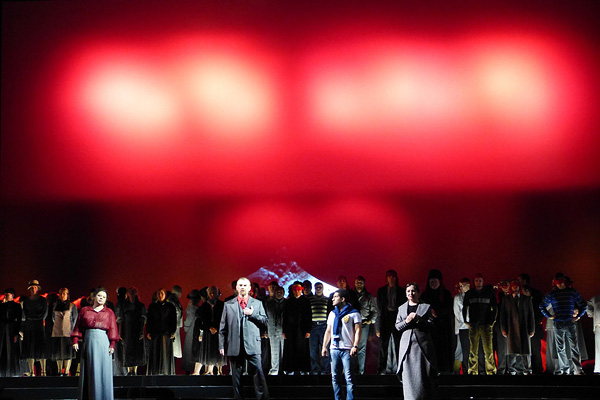

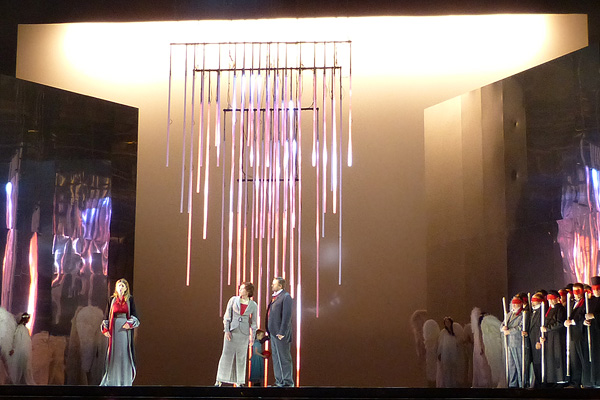

Mariinsky Theatre, ''Requiem'' In the background, a Rear-illuminated backdrop realized with the film RNB - Nebbia, 18 x h 12 m.The Rear-illuminated backdrop filters and diffuses ...
... the light projected on a cyclorama made of white ASC1220S - Sceno 1.200 cm muslin, 22 x h 12 m ...
... that was installed behind the same.The blue light in the middle behind the choir is a dynamic video-projection directly rear-projected on the backdrop RNB - Nebbia.
Théâtre de la Ville, ''Mary Said What She Said'' Backlighting effect created with a RNB - Nebbia backdrop, 11,8 x h 9,5 m, in front of which, in a following scene ...
... a transparent backdrop made of QGH - Ghiaccio of analogous dimensions will be lowered.Some smoke is introduced into the space between the two backdrops ...
... which effect is superimposed on the back-lighting ones of the RNB - Nebbia backdrop.
Opéra de Nice, ''Adriana Lecouvreur'' Three translucent and extremely reactive to light walls were created using 17 strips of RNB - Nebbia.
RNB - Nebbia is a translucent film for rear and frontal projections.
It has an appearance that is somewhat similar to that of frosted glass and, when properly illuminated, takes on a unique and characteristic metallic effect.
Its translucency gives it a very high transmittance in rear projection, while its poor diffusion properties produce an evident hot spot effect.
Those that would be problems for a normal rear-projection screen are instead exploited to obtain original effects, both with large theatrical rear-projection screens than simply with strips used in theatrical or exhibitive set-ups.
It is used framed to make backlighted Flats with a considerable size or scenographic inserts with a smaller size.
It can be painted or digitally printed.
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
UNI 9177 class 1
NFP 92-503 class M2
NFPA 701 pass
Composition
100% PVC
Weight
400 g / m²
Thickness
0,30 mm
Width
220 cm
Length
100 m
Packing method
rolled-up
Colours
translucent
visual side embossed and matte

Peak transmittance
22.00 β
Peak gain
0.34 β
Rear-projection
Rating 5.0 brightness
Rating 2.5 contrast
Rating 4.5 color fidelity
Rating 4.5 cone of vision
Rating 1.0 anti hot spot (light diffusion)
Rating 1.5 anti parasitic light (interference environmental light)
Front projection
Rating 3.0
Printability

Availabilty
by the metre (folded or rolled, max. 25 m rolls)
in full rolls
in tailor made creations

Colour chart

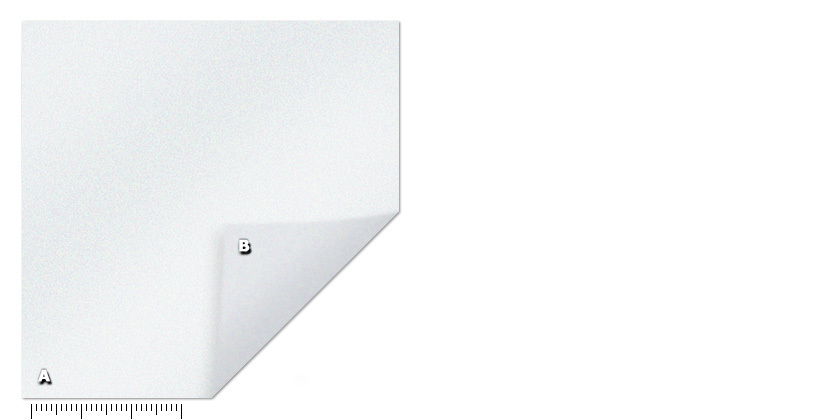

RNB - Nebbia A. embossed matte translucent (vision side)B. smooth shiny translucent (back)
