5W - Master Wide

Ecran motorizat lăţime 3 / 4,5 m

5W - Master Wide Ideal for polyvalent spaces to use occasionally as room for projections: classrooms, meeting rooms, small rooms for conferences.Lățimi standard:A - Ecran: 300 / 350 / 400 / 450 cmB - Cutie = A + 11 cmC - Contragreutate = A + 4 cm1 - Alimentare standard: în dreapta
Vezi toate
Raportul de aspect 1:1 - Dimensiuni standard Dimensiunea ecr. ... Greutate ±300 x h 300 cm .......... 26 kg350 x h 350 cm .......... 30 kg400 x h 400 cm .......... 36 kg
Raportul de aspect 4:3 - Dimensiuni standard Dimensiunea ecr. ... Greutate ±350 x h 265 cm .......... 29 kg400 x h 300 cm .......... 34 kg450 x h 340 cm .......... 38 kg
Raportul de aspect 16:10 - Dimensiuni standard Dimensiunea ecr. ... Greutate ±350 x h 219 cm .......... 28 kg400 x h 250 cm .......... 33 kg450 x h 281 cm .......... 37 kg16:10 aspect ratio can also be achieved by reducing with the limit switch the height of a screen with 4:3 aspect ratio.
Raportul de aspect 16:9 - Dimensiuni standard Dimensiunea ecr. ... Greutate ±350 x h 197 cm ... 28 kg400 x h 225 cm ... 33 kg450 x h 253 cm ... 37 kg16:9 aspect ratio can also be achieved by reducing with the limit switch the height of a screen with 4:3 aspect ratio or 16:10 aspect ratio.
Position of the screen in relation to the roll 1 - Rear drop (standard)2 - Front drop (optional)A - Projection side
Ceiling and wall installation Suportul de fixareA - gaură M6Suporturile de fixare:sunt incluse in pretul de achizitie- sunt 4 pentru toate lățimile de ecran
Ways of installation 1 - Installation to ceiling2 - Installation to wall
Structure
case din enameled alb aluminiu
winding roll din aluminu
Engine
silent engine 230 V - 50 Hz
power 6 Nm - consumption 90 W
speed 17 rpm - roll Ø 10 cm - lifting speed 9 cm per second
Radiocomanda (optional)
Ecran
at choice - conform Normei Europene EN 13501·1
Instalare
to ceiling / to wall / to the stage structures
Caracteristici
dimensiune personalizată prelucrarea too
maximum lăţime 4,5 m - maximum h 4,0 m
CE conformity

Lăţime of the ecran
h at choice
Greutate
the ecran is excluded
300 cm . . . . . . .
350 cm . . . . . . .
400 cm . . . . . . .
450 cm . . . . . . .
22 kg
24 kg
26 kg
29 kg

Total lăţime
of the case
lăţime of the ecran + 11 cm
(it can be reduced la cerere up to 5 cm)

Section of the case
124 x 133 mm

Graficul de culoare

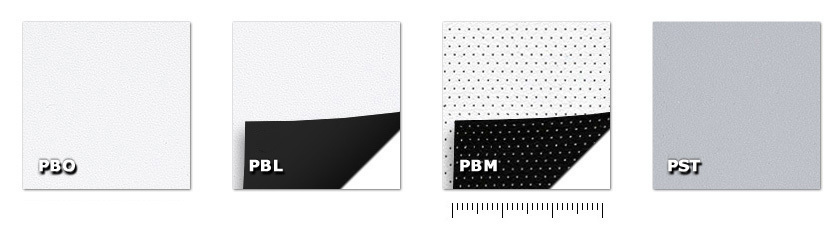

Ecrane pentru proiecţie faţă PBO - Bianco OtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy
Ecrane retroproiecţie RNV - NevadaRAR-Arizona
Film per chroma key QCK - Cychroma
